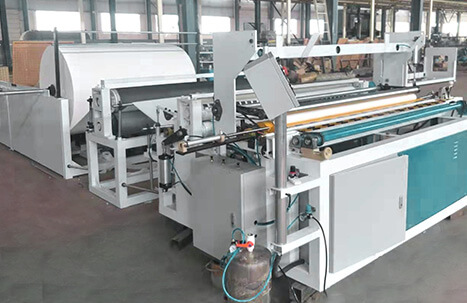

This toilet paper rewinding machine can rewind jumbo toilet paper roll into various small diameters without changing its width. This rewinding machine has perforating unit, embossing unit and 1-3 jumbo roll unwinding stands, electricity control, glue tank and air compressor. The output paper roll is ready for cutter. This equipment can process raw paper of 1.2m, 1.75m, 1.95m, 2.15m, 2.35m, 2.55m, 2.75m etc in width.
Band-saw Paper cutting machine can cut tissue roll(which is rewinded into desired diameter) into different length. Which is an important paper process machine
Whatsapp/Mobile: 0086-13937183852
Email: andy@xingtumachine.com
1.automatically change jumbo roll;
2.trimming paper precisely;
3.automatically spray glue;
4.automatically perforating;
5.automatically embossing;
6.easy to operate and maintain;
7.low noisy;
| Machine Model | 1092 | 1575 | 2000 | 2200 | 2400 | 2600 | 2800 |
| Width of material jumbo roll (mm) | 1200 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 |
| Finished Products Diameter | Φ80~120mm (Tightness can be adjustable) | ||||||
| Finished Products Inner core Diameter | Φ32~60 mm | ||||||
| Material Jumbo roll diameter (mm) | Φ1200 (Other sizes please point out) | ||||||
| Jumbo Roll Inner core Diameter | Φ76.2 mm(other sizes please point out) | ||||||
| Perforation distance (mm) | 4 blade,90~160mm; 2 blade,180~320mm; | ||||||
| Production speed | 160-200 m/minute | ||||||
| Operation System | Touching-screen Multi-menu Man-machine Interface Operation System | ||||||
| Controller | PLC program | ||||||
| Mechanical driving | Driven by stepless regulator to guarantee the precise length of final products. | ||||||
| Air compressed system | 3HP air compressor, minimum pressure: 0.5Mpa | ||||||
| Power | 4kw-10kw (380V 50Hz) | ||||||
| optional items | |||||||
| Embossment | Single embossment, Double embossment, Edge embossment | ||||||
| Embossing system | 3 options: Paper roller to steel roller, rubber roller to steel roller, steel roller to steel roller | ||||||
| Jumbo roll stander | 1-3 plies | ||||||
| Rewinding unit | Core or coreless | ||||||
| Other special request for machine is welcome | |||||||
