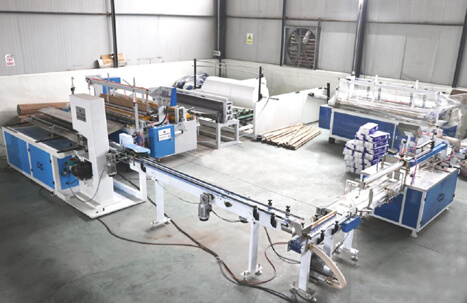

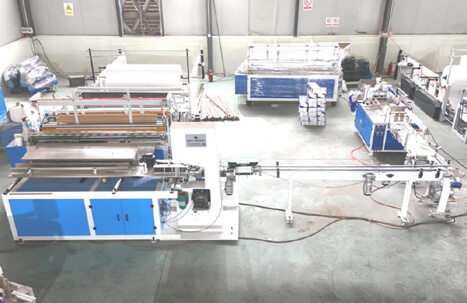

The complete toilet tissue paper roll production line mainly includes three parts: jumbo roll toilet tissue paper rewinding machine, cutting machine and packing machine.
(1) Toilet Tissue Paper Rewinding Machine
This toilet tissue paper rewinding machine can rewind jumbo tissue paper roll into various small diameters without changing its width. This rewinding machine has perforating unit, embossing unit and 1-3 jumbo roll unwinding stands, electricity control, glue tank and air compressor.
(2) Toilet Paper Roll Cutting Machine
The cutting machine can cut tissue roll(which is rewinded into desired diameter) into smaller length.
(3) Toilet Paper Packing Machine
The packing machine is used to pack toilet paper rolls into plastic bags.
Whatsapp/Mobile: 0086-13937183852
Email: andy@xingtumachine.com
| Machine Model | 1092 | 1575 | 2000 | 2200 | 2400 | 2600 | 2800 |
| Width of material jumbo roll (mm) | 1200 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 |
| Finished Products Diameter | Φ80~120mm (Tightness can be adjustable) | ||||||
| Finished Products Inner core Diameter | Φ32~60 mm | ||||||
| Material Jumbo roll diameter (mm) | Φ1200 (Other sizes please point out) | ||||||
| Jumbo Roll Inner core Diameter | Φ76.2 mm(other sizes please point out) | ||||||
| Perforation distance (mm) | 4 blade,90~160mm; 2 blade,180~320mm; | ||||||
| Production speed | 160-200 m/minute | ||||||
| Operation System | Touching-screen Multi-menu Man-machine Interface Operation System | ||||||
| Controller | PLC program | ||||||
| Mechanical driving | Driven by stepless regulator to guarantee the precise length of final products. | ||||||
| Air compressed system | 3HP air compressor, minimum pressure: 0.5Mpa | ||||||
| Power | 4kw-10kw (380V 50Hz) | ||||||
| optional items | |||||||
| Embossment | Single embossment, Double embossment, Edge embossment | ||||||
| Embossing system | 3 options: Paper roller to steel roller, rubber roller to steel roller, steel roller to steel roller | ||||||
| Jumbo roll stander | 1-3 plies | ||||||
| Rewinding unit | Core or coreless | ||||||
| Other special request for machine is welcome | |||||||
